Porca dryspin®, rosca de passo rápido, J350SRM

  • Material: iglidur® J350
  • Direção da rosca: Rosca direita
  • Tipo de rosca: Rosca de passo rápido dryspin®
  • Design: Standard
  • Porca cilíndrica
Descrição do produto
Lead screw nut made of iglidur® J350 - High-temperature material for temperatures up to +150°C
Our lead screw nut made of the high-performance polymer iglidur® J350 enables the application at permanently medium to high ambient temperatures. The long-term application temperature ideally should be between +60 and + 150°C in order to obtain the maximum performance out of the material.
Other advantages include:

Dimensionally stable even at high temperatures
Certifiable according to EN 45545 HL3, R24
► Ideally suited for the railway industry
 Good coefficient of friction at medium loads
Application range up to +150°C upper long-term application temperature
 Permissible permanent surface pressure in the threads 0 - 3.0MPa


___________________________________________________________________________________________________________________________________________

All our lead screw nuts are made from the wear-resistant iglidur® high-performance polymers.
There are seven different standard materials available for different purposes: iglidur J - high efficiency at all speeds, iglidur J350 - for temperatures up to +150°C, iglidur A180 - FDA-compliant for the food and pharmaceutical industry, iglidur E7 - for high speeds with low loads, iglidur R - anti-oscillation and anti-vibration, iglidur J200 - the best counter partner for aluminium and iglidur W300 - for heavy-duty applications.

This gives you the following advantages according to the materials:
100% lubrication-free and maintenance-free
Durable and robust in adverse environments
Chemical resistant and mould-free
Quiet and vibration-free travel
PTFE-free
FDA compliance through A180
Withstanding high loads
Long-term use in temperature ranges from -20°C to +150°C

The base material is additionally reinforced with technical fibres or fillers. The solid lubricants are microscopic particles, embedded in millions of tiny chambers of the material. This is adequate to sufficiently lubricate the immediate surrounding area and to reduce the friction of the system. These additives significantly stabilise our lead screw nuts for wear resistance.

In addition to a large selection of standard materials for lead screw technology, igus also offers a wide range of variants in the lead screw nut geometry itself:

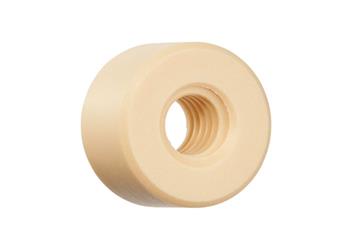

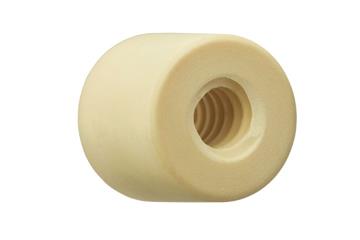

Porcas cilíndricas

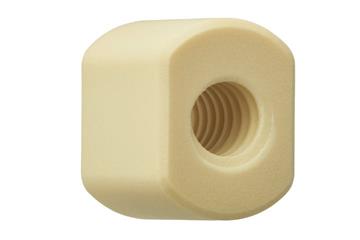

Porcas cilíndricas facetadas

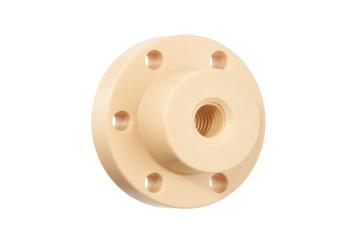

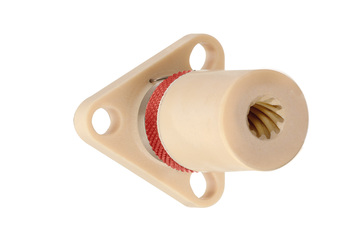

Porcas com flange

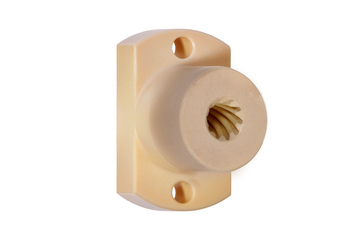

Porcas com flange facetadas
Geometria das porcas para aplicações exigentes

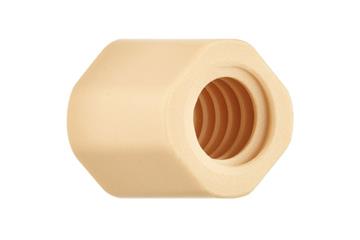

Porcas cilíndricas injetadas
Porcas com flange injetadas
